Facilities & Infrastructure
Complete Infrastructure
Built for Industrial Excellence
Lion Industrial Park provides end-to-end infrastructure so tenants can focus on production. Every utility is independently metered, maintained to international standards, and scalable to your operational demand.
Infrastructure

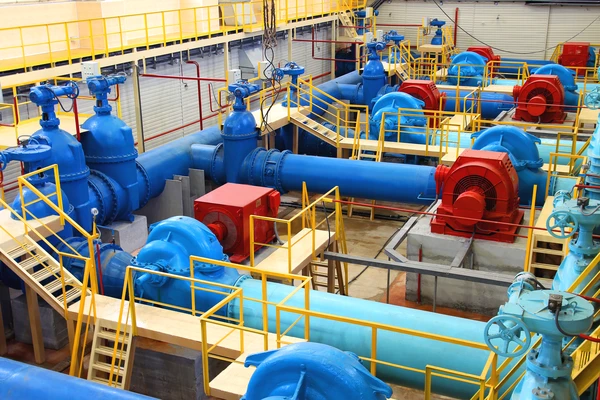

Water Supply
Reliable, high-volume water supply sourced from the regional water authority (PDAM) with a dedicated deep-well backup system, ensuring uninterrupted supply for all industrial activities 24 hours a day.
- Source
- PDAM + deep-well backup
- Capacity
- 5,000 m³/day (expandable)
- Pressure at Connection
- 3–5 bar
- Water Quality
- Meets Permenkes No. 32/2017
- Connection
- Individual metering per lot, 3-inch pipe
- Availability
- 24/7
Connectivity

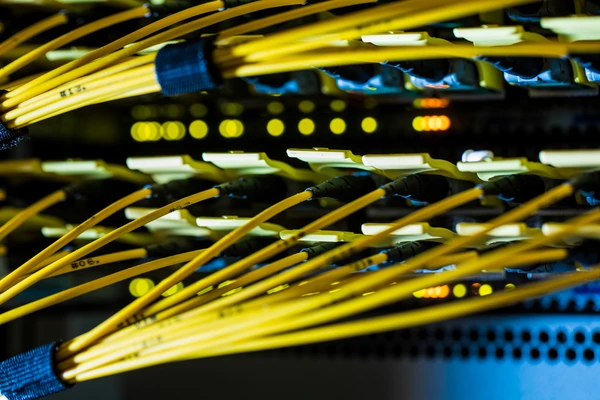

Fiber Optic
Enterprise-grade fiber optic network covering the entire estate with multi-provider redundancy, ensuring tenants have access to high-speed, low-latency internet connectivity at all times.
- Bandwidth
- Up to 1 Gbps dedicated per tenant
- Network Type
- Metro Ethernet, FTTH
- Providers
- Multiple licensed ISPs (redundant)
- Topology
- Ring topology for high availability
- SLA Uptime
- 99.9%
- Coverage
- Estate-wide, individual per lot
Energy

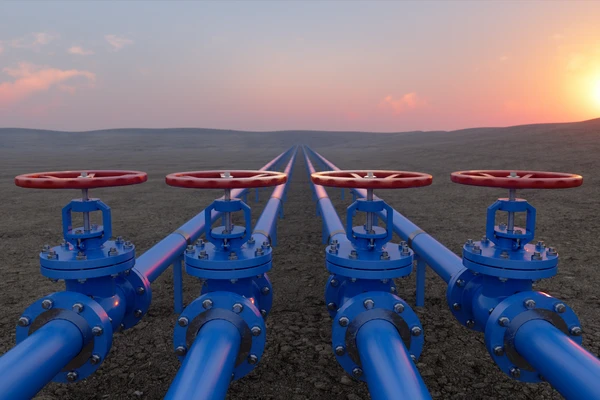

Natural Gas
Direct pipeline access from PT Perusahaan Gas Negara (PGN) delivering a cost-effective, clean energy source ideal for manufacturing processes requiring continuous thermal energy.
- Provider
- PT Perusahaan Gas Negara (PGN)
- Distribution Pressure
- Medium pressure (≤ 4 bar)
- Metering
- Individual smart meter per lot
- Pipeline Standard
- HDPE & carbon steel, ASME B31.8
- Billing
- Direct to PGN, monthly
- Availability
- 24/7 continuous supply
Environment

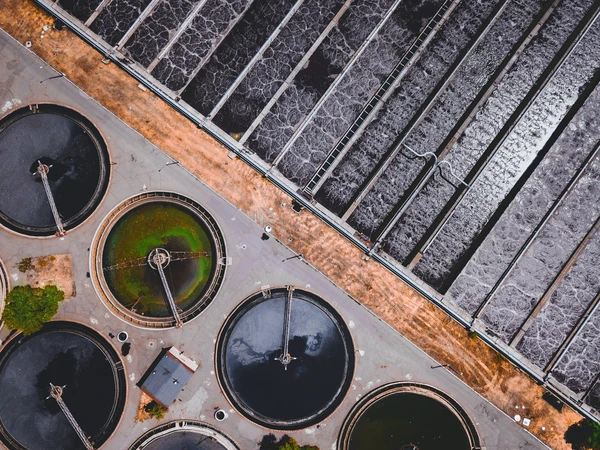

Waste Water Treatment
A centralised wastewater treatment plant (WWTP) handles industrial effluent from all tenants, processing it to meet government environmental discharge standards before release.
- Treatment Capacity
- 3,000 m³/day
- Process
- Biological (activated sludge) + physical-chemical
- Effluent Standard
- PerMenLHK P.68/2016
- Monitoring
- Continuous online (CEMS)
- Sludge Handling
- Dewatering + licensed B3 disposal
- Reporting
- Monthly to KLHK
Energy

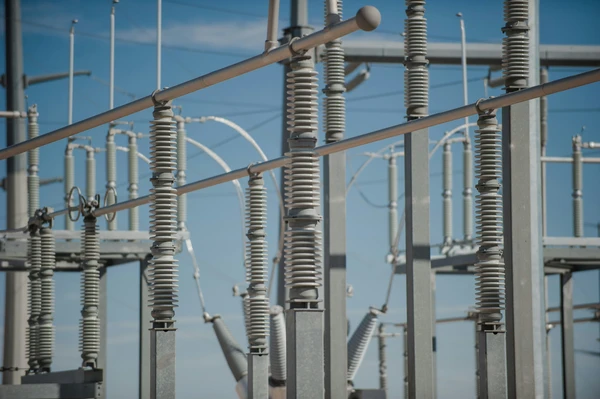

Electric Power
A dedicated PLN substation inside the estate guarantees stable, sufficient power for heavy industrial operations, with emergency backup coverage for common areas.
- Provider
- PT PLN (Persero)
- Substation
- Dedicated 150/20 kV inside estate
- Total Capacity
- 60 MVA (expandable)
- Distribution Voltage
- 20 kV, stepped down per lot
- Metering
- Individual AMR meter per lot
- Backup
- Diesel genset for common areas
Access

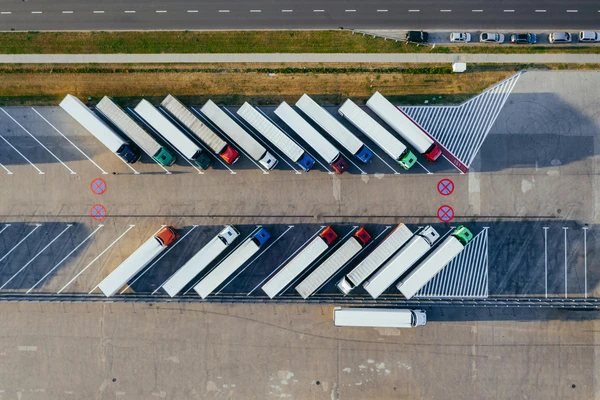

Road System
Wide, heavy-duty internal roads are designed for unobstructed movement of large industrial vehicles, container trucks, and logistics fleets throughout the estate at all times.
- Main Road Width
- 20 meters (2 × 2 lanes)
- Secondary Road Width
- 12 meters
- Axle Load Capacity
- 30 tonnes
- Surface
- Rigid pavement, K-350 reinforced concrete
- Drainage
- Complete stormwater system on both sides
- Street Lighting
- LED, estate-wide
Build Your Future at
Lion Industrial Park
Strategic location. Complete infrastructure. Ready to build.
